Description:

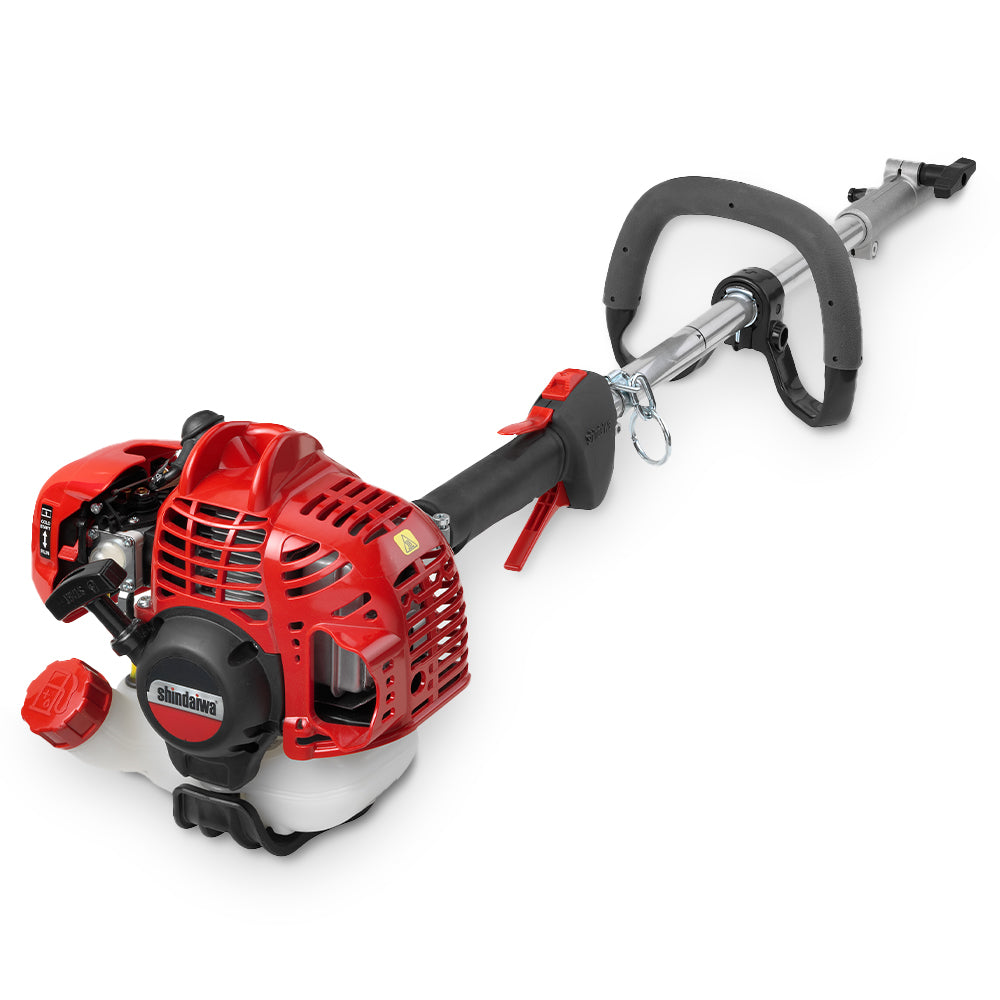

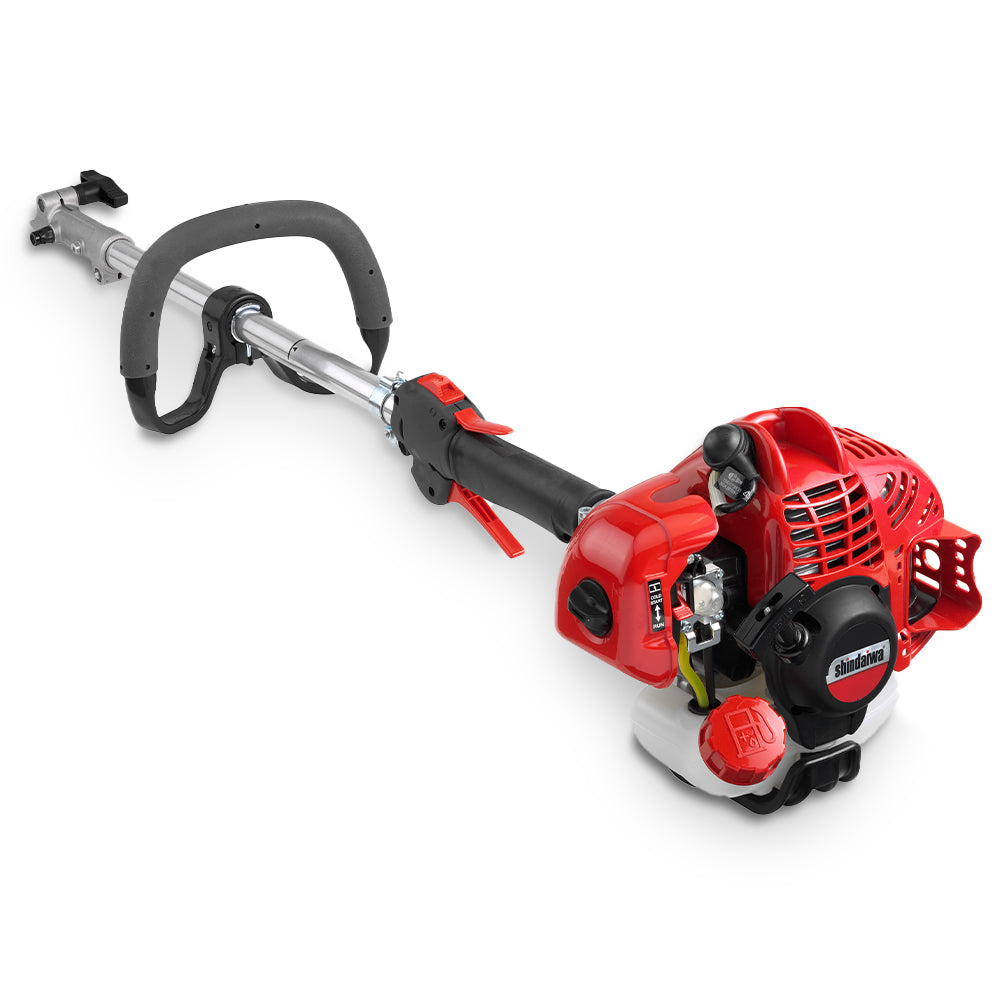

Using the accompanying illustrations as a guide, familiarize yourself with your unit and its various components. Understanding your unit helps ensure top performance, long service life, and safer operation.

Features:

• Air Cleaner: Non-reversible foam filter element
• Starting Method: Recoil Starter
• Stopping Method: Slide switch
• Transmission: Automatic, centrifugal clutch with bevel gear

Specifications:

 Engine

• Engine Name: M242
• Type: 2-stroke, single cylinder, air-cooled, gasoline engine
• Displacement: 23.9 cc (1.46 cu. in.)
• Bore x Stroke: 33 x 28 mm (1.3 x 1.1 in.)
• Fuel/Oil Ratio: 50:1 with *ISO-L-EGD or JASO FD class engine oil
• Carburetor: Diaphragm-type carburetor
• Ignition: One-piece electronic, transistor-controlled
• Spark Plug: NGK BPMR8Y (gap 0.6 mm / 0.024 in)

Performance

• Torque: 16.7 – 18.6 N·m (148–165 in·lbf)
• Idle Speed: 3,000 RPM
• Clutch Engagement Speed: 3,850 RPM
• W.O.T. Speed (Nylon Line Head): 9,600 RPM
• W.O.T. Speed (Blade): 12,000 RPM

Fuel & Capacity

• Fuel Tank Capacity: 690 ml (23.3 oz.)

Weight & Dimensions

• Dry Weight (less attachment): 4.4 kg (9.8 lbs)
• Dimensions (L × H × W):
• 1034 × 245 × 248 mm
• 40.7 × 9.65 × 9.76 in
