Description:

In 1983, Suzuki introduced the world's first 4-wheel ATV. Today, Suzuki ATVs are everywhere. From the most remote areas to the most everyday tasks, you will find the KingQuad powering a rider onward. Across the board, our KingQuad lineup is an exceptional group of ATVs.

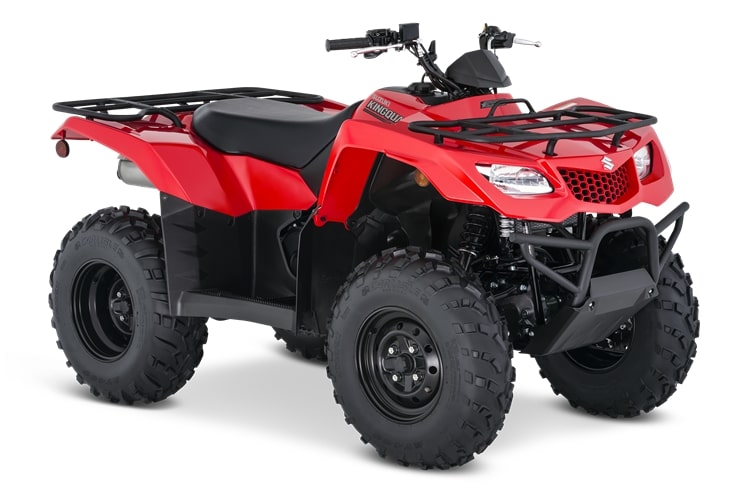

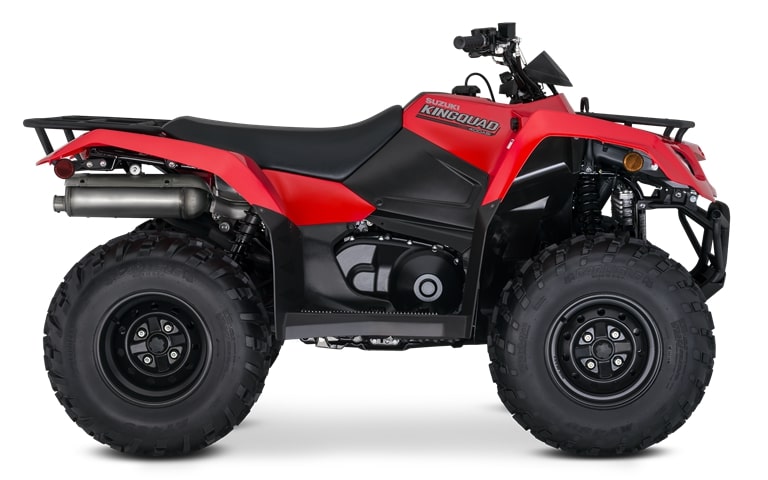

Whether you are working hard or getting away from it all, the 2024 Suzuki KingQuad 400ASi helps you every step of the way. The fully automatic QuadmaticTM transmission has 2WD and 4WD modes to manage rough trail conditions while completing even the most demanding chores. Along with exceptional engine performance across the powerband, its high-performance iridium spark plug and Pulsed-secondary AIR-injection (PAIR) system help provide outstanding fuel efficiency and clean emissions.

Features:

• Powerful, fuel-injected, 4-stroke engine is easy on gas
• Large fuel tank and plush seat deliver extended, comfortable riding range
• Fender-mounted shifter controls the QuadMatic™ transmission
• Select 2WD or 4WD via a handlebar-mounted lever
• Rugged bodywork and full racks to tackle any task

Specifications:

Engine

• Displacement: 376cc (22.94 cu in.), 4-stroke, air-cooled with SCAS, OHC single cylinder
• Bore x Stroke: 82.0 mm x 71.2 mm (3.228 in. x 2.803 in.)
• Compression Ratio: 9.0:1
• Fuel System: Suzuki electronic fuel injection
• Starter: Electric
• Lubrication: Wet sump

Transmission / Drivetrain

• Transmission: Automatic variable ratio (V-belt), high/low-range & reverse
• Clutch: Dry shoe, automatic, centrifugal
• Drive: 2WD / 4WD selectable
• Final Drive: Shaft drive

Chassis / Suspension / Brakes

• Front Suspension: Independent, double wishbone, coil spring, oil damped
• Rear Suspension: Swing-arm, coil spring, oil damped
• Front Brakes: Disc brakes, twin rotors
• Rear Brake: Single drum brake

Tires

• Front: AT25 × 8-12, tubeless (x2)
• Rear: AT25 × 10-12, tubeless (x2)

Dimensions

• Overall Length: 2060 mm (81.1 in.)
• Overall Width: 1145 mm (45.1 in.)
• Overall Height: 1220 mm (48.0 in.)
• Wheelbase: 1270 mm (50.0 in.)
• Ground Clearance: 250 mm (9.8 in.)
• Seat Height: 840 mm (33.1 in.)
• Curb Weight: 265 kg (628 lb.)

Electrical

• Ignition: Electronic (transistorized)
• Headlights: 12V 35/35W (HS1) × 2
• Tail Light: 12V 21/5W

Other Features

• Fuel Tank Capacity: 16.0 L (4.2 US gal.)
• Colors: Terra Green, Flame Red

Warranty

• Standard: 24-month limited warranty
• Extension: Optional coverage through Suzuki Extended Protection (SEP)
