Description:

In 1983, Suzuki introduced the world's first 4-wheel ATV. Today, Suzuki ATVs are everywhere. From the most remote areas to the most everyday tasks, you will find the KingQuad powering a rider onward. Across the board, our KingQuad lineup is an exceptional group of ATVs.

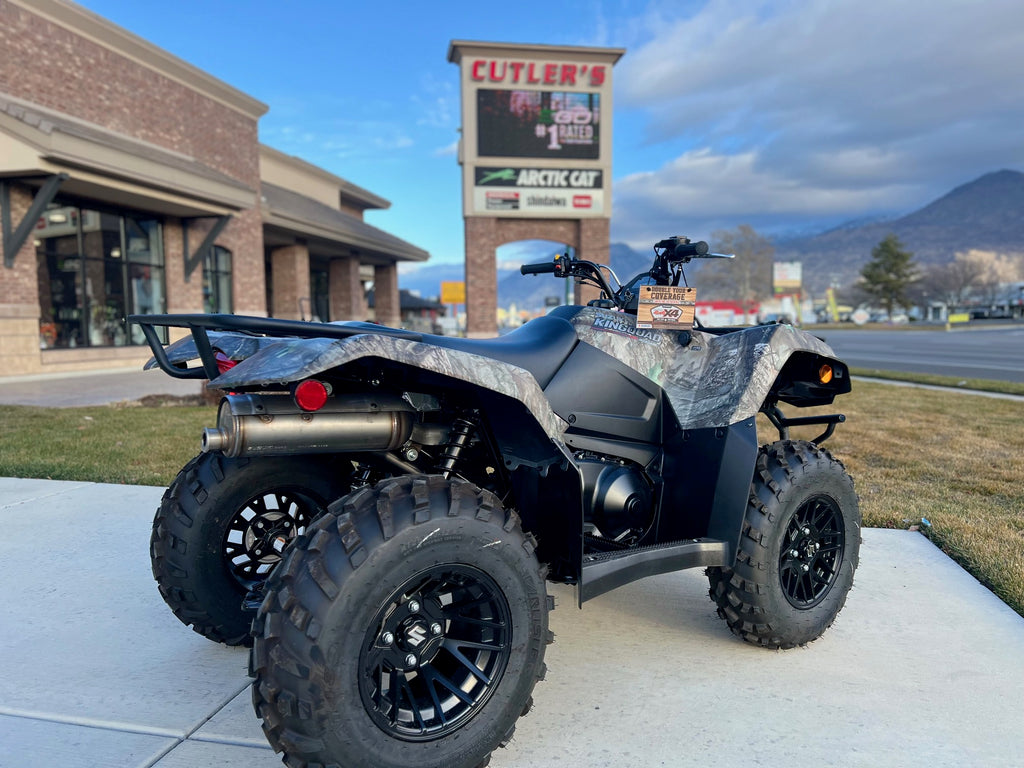

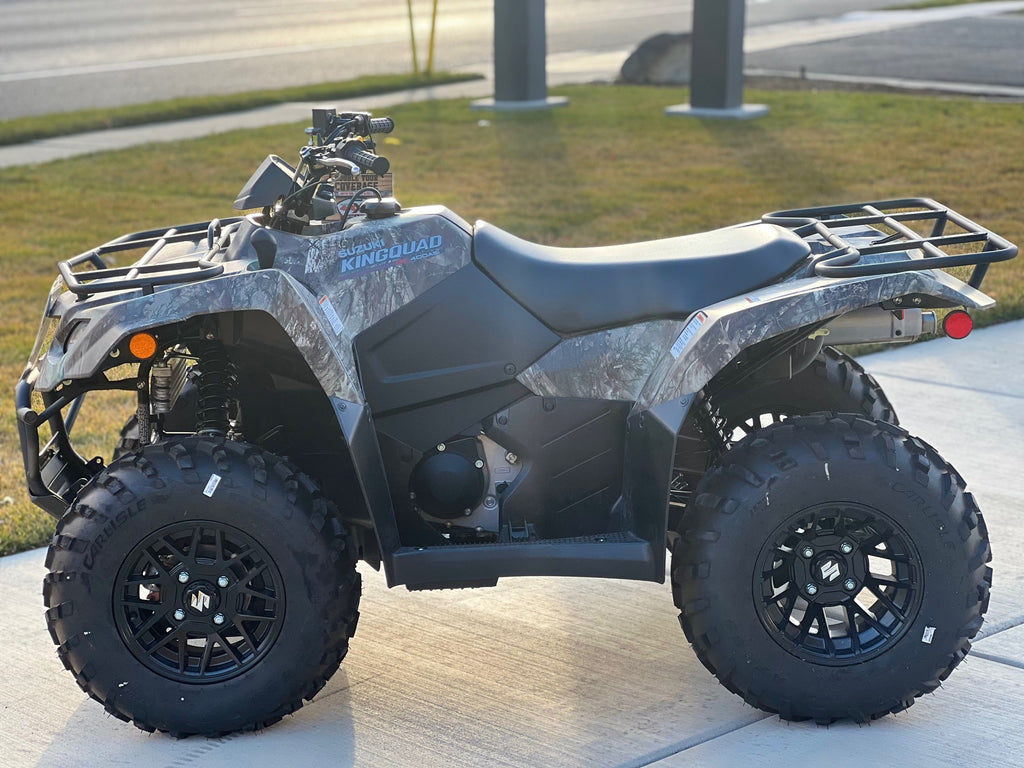

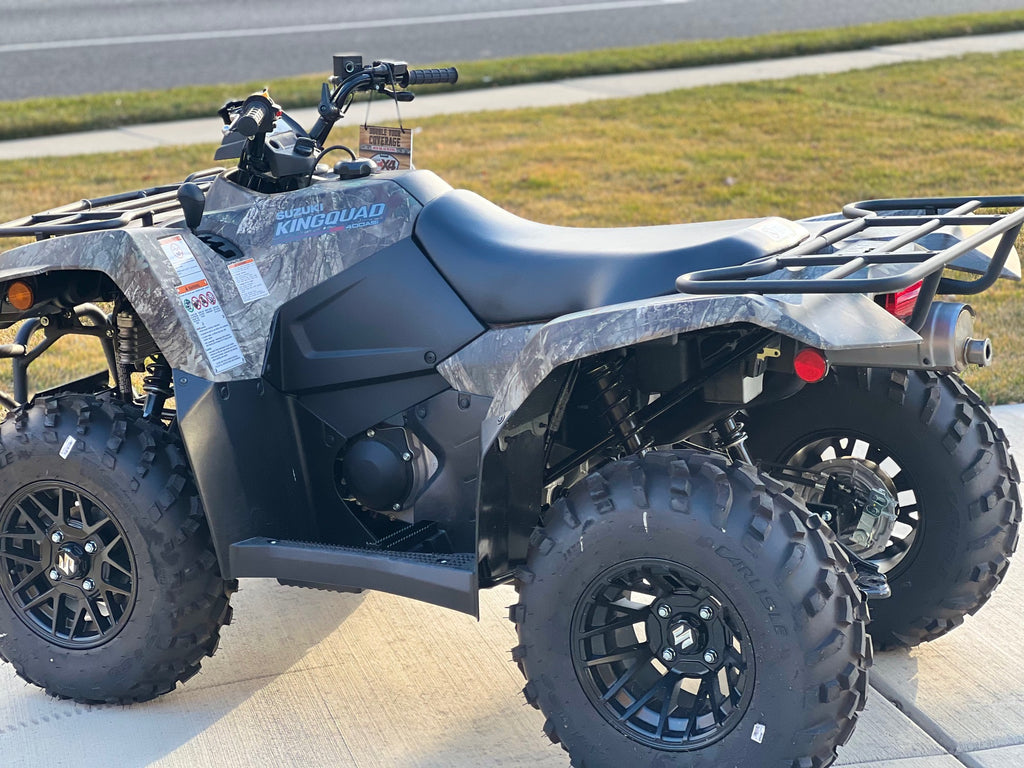

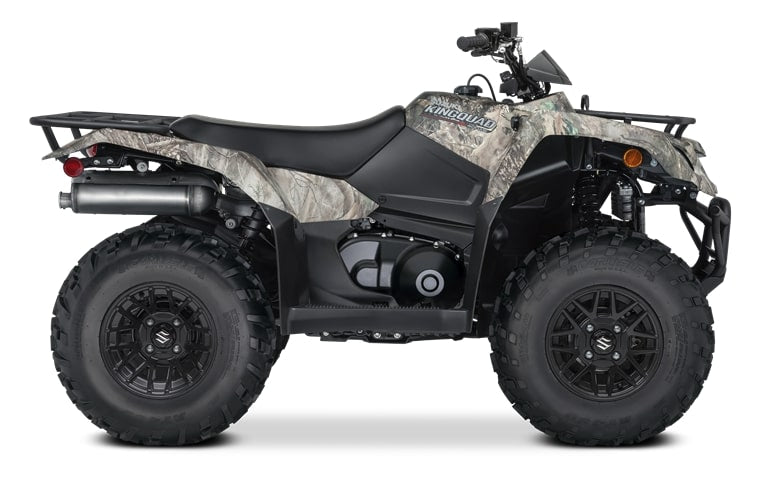

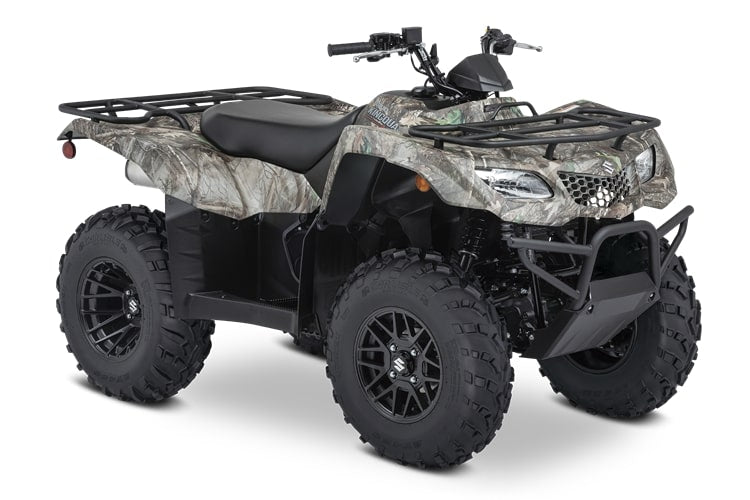

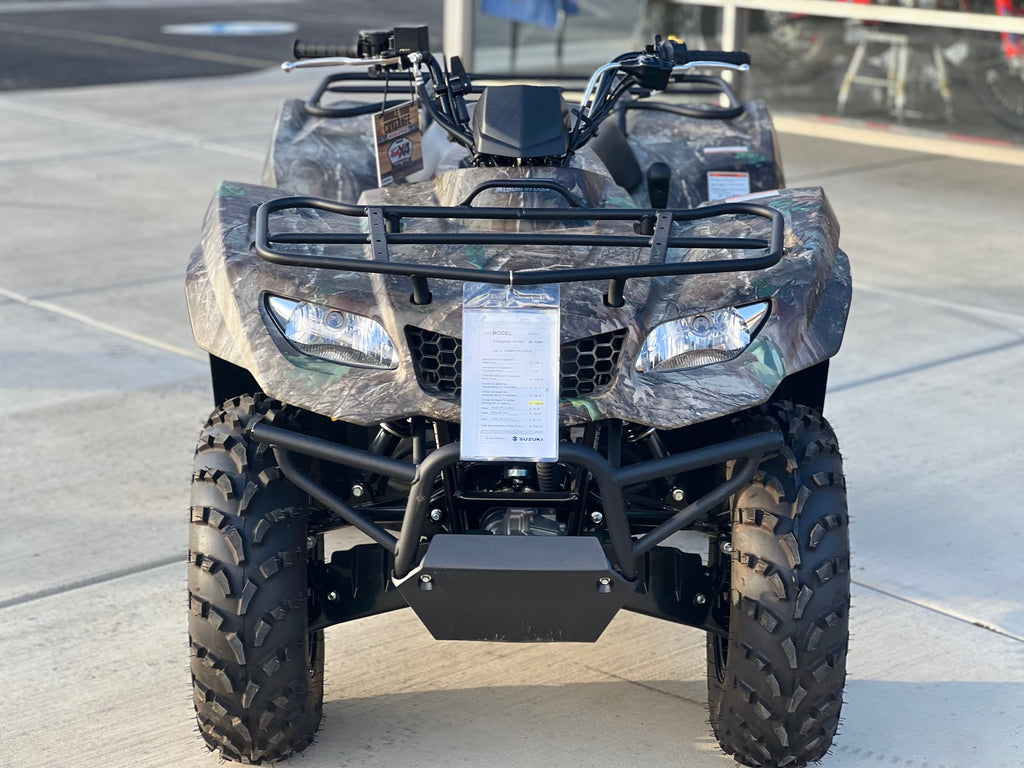

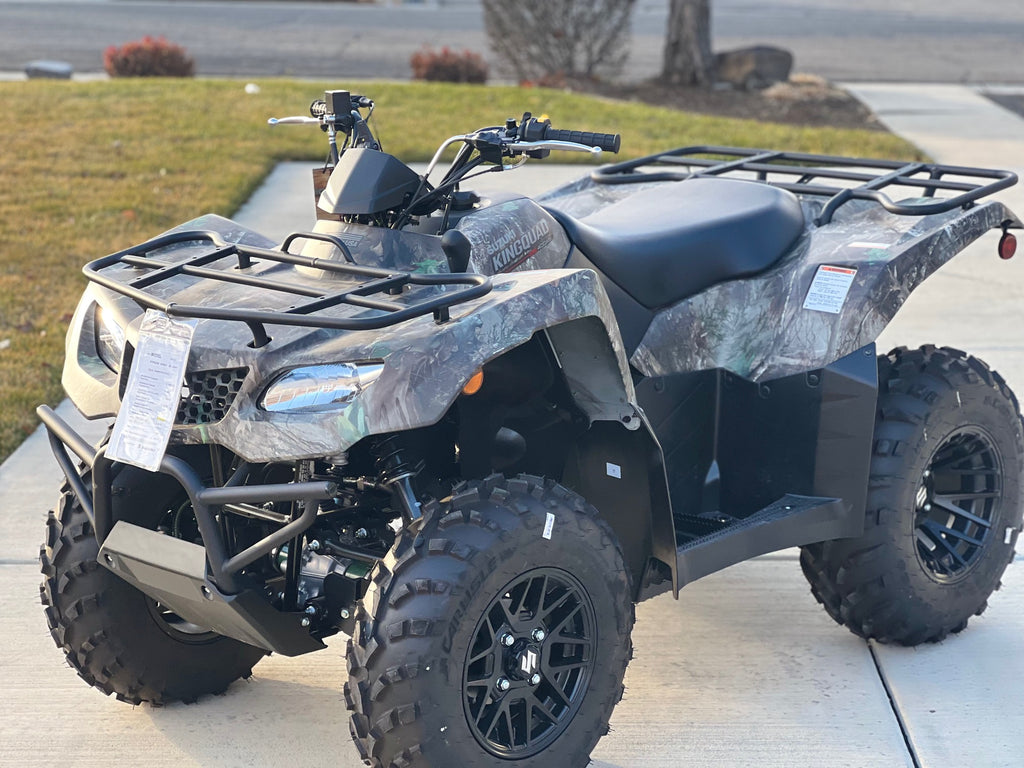

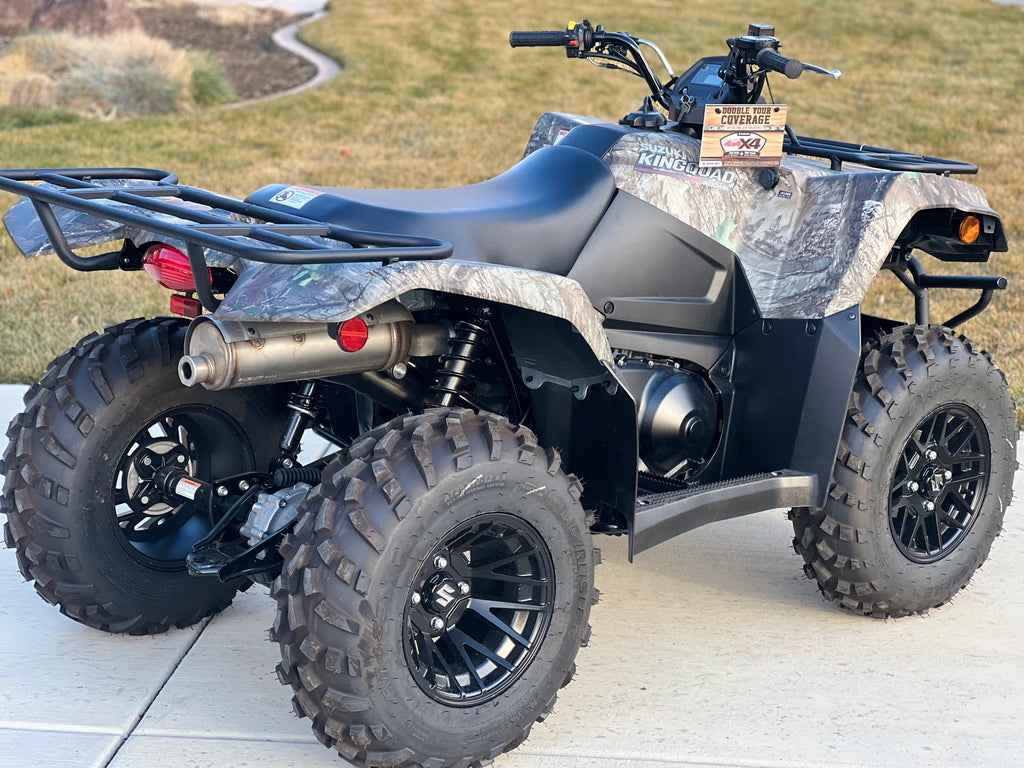

Ready to take you on your next outdoor adventure, the 2024 Suzuki KingQuad 400ASi SE Camo is wearing True Timber Kanati pattern camouflaged bodywork and riding on strong, lightweight blacked-out cast aluminum wheels shod with aggressive 25-inch Carlisle tires. The fully automatic QuadmaticTM transmission has 2WD and 4WD modes to manage rough trail conditions while completing even the most demanding chores. Along with exceptional engine performance across the powerband, its high-performance iridium spark plug and Pulsed-secondary AIR-injection (PAIR) system help provide outstanding fuel efficiency and clean emissions.

Features:

• Powerful, fuel-injected, 4-stroke engine is easy on gas
• Large fuel tank and plush seat deliver extended, comfortable riding range
• Fender-mounted shifter controls the QuadMatic™ transmission
• Select 2WD or 4WD via a handlebar-mounted lever
• Rugged bodywork and full racks to tackle any task
• Ready for outdoor action with True Timber Kanati pattern camouflaged bodywork

Specifications:

Engine

• Displacement: 376cc (22.94 cu. in.)
• Type: 4-stroke, air-cooled with SCAS, OHC single cylinder
• Bore × Stroke: 82.0 mm × 71.2 mm (3.228 in. × 2.803 in.)
• Compression Ratio: 9.0:1
• Fuel System: Suzuki electronic fuel injection
• Starter: Electric
• Lubrication: Wet sump

Transmission & Drive

• Transmission: Automatic variable ratio (V-belt) with high/low range & reverse
• Clutch: Dry shoe, automatic, centrifugal type
• Driven Wheels: 2WD / 4WD
• Final Drive: Shaft drive

Chassis & Suspension

• Front Suspension: Independent, double wishbone, coil spring, oil damped
• Rear Suspension: Swingarm type, coil spring, oil damped
• Front Brakes: Disc brakes, twin rotors
• Rear Brakes: Single drum brake
• Front Tires: AT25 × 8-12, tubeless × 2
• Rear Tires: AT25 × 10-12, tubeless × 2
• Fuel Tank Capacity: 16.0 L (4.2 US gal.)
• Color Option: True Timber Kanati Camouflage

Electrical

• Ignition: Electronic ignition (transistorized)
• Headlights: 12V 35/35W (HS1) × 2
• Tail Light: 12V 21/5W

Dimensions

• Overall Length: 2,060 mm (81.1 in.)
• Overall Width: 1,145 mm (45.1 in.)
• Overall Height: 1,220 mm (48.0 in.)
• Wheelbase: 1,270 mm (50.0 in.)
• Ground Clearance: 250 mm (9.8 in.)
• Seat Height: 840 mm (33.1 in.)
• Curb Weight: 265 kg (628 lb.)

Warranty

• Standard Warranty: 24-month limited warranty
• Extended Coverage: Longer coverage with added benefits available through Suzuki Extended Protection (SEP).
