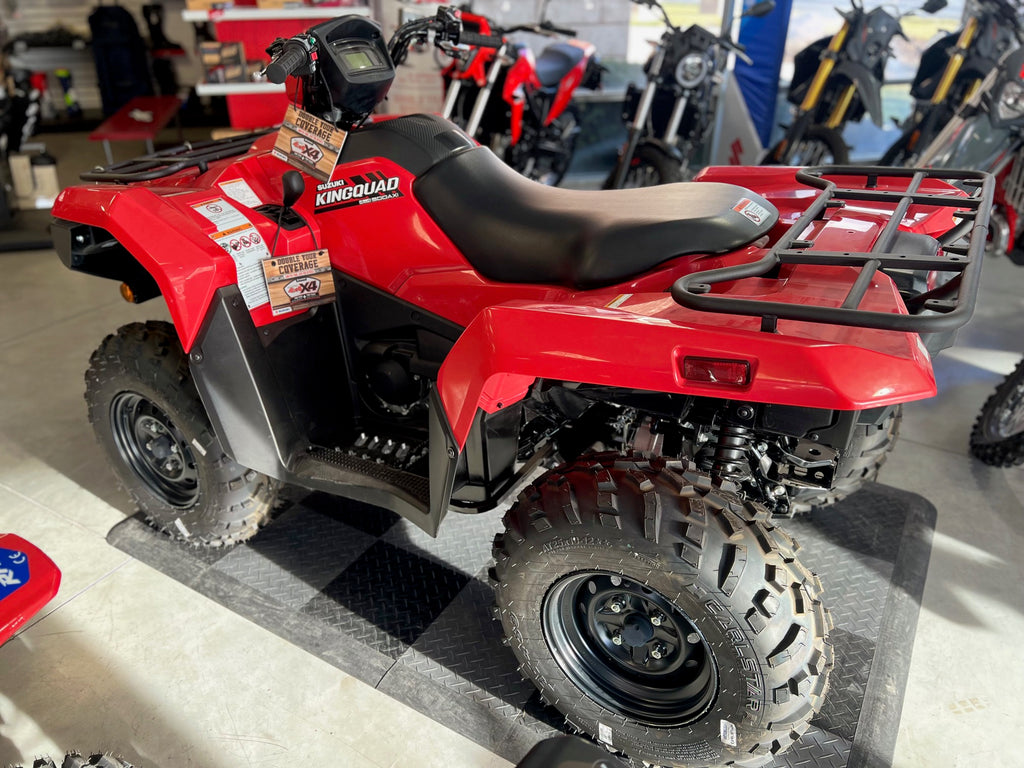

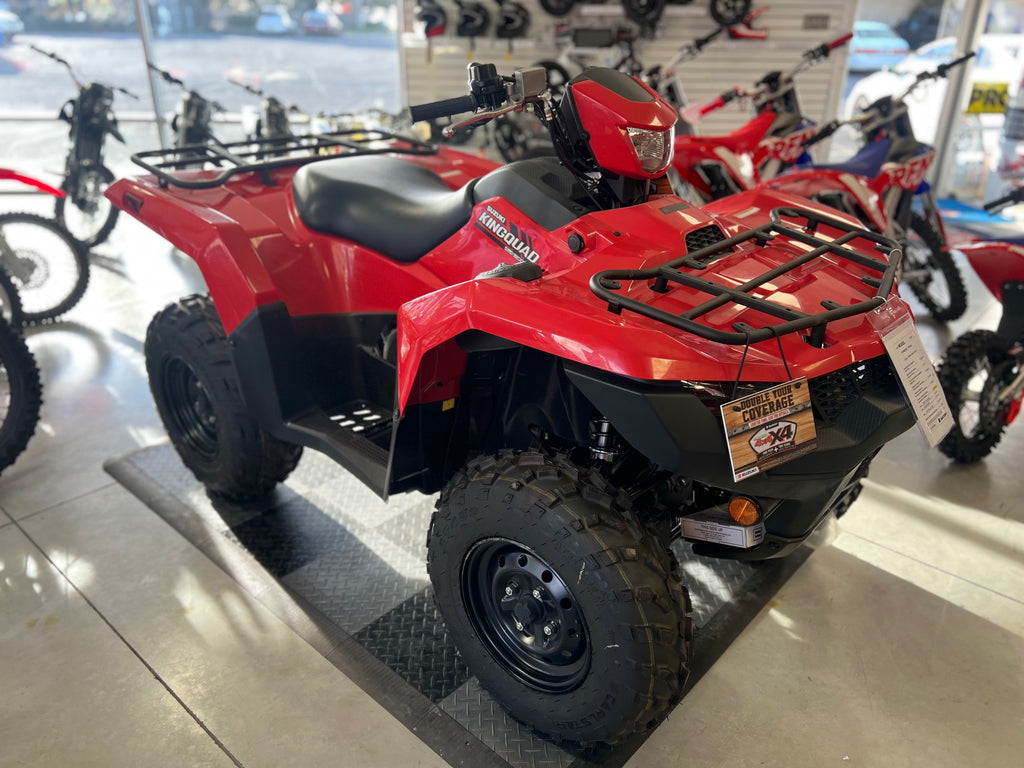

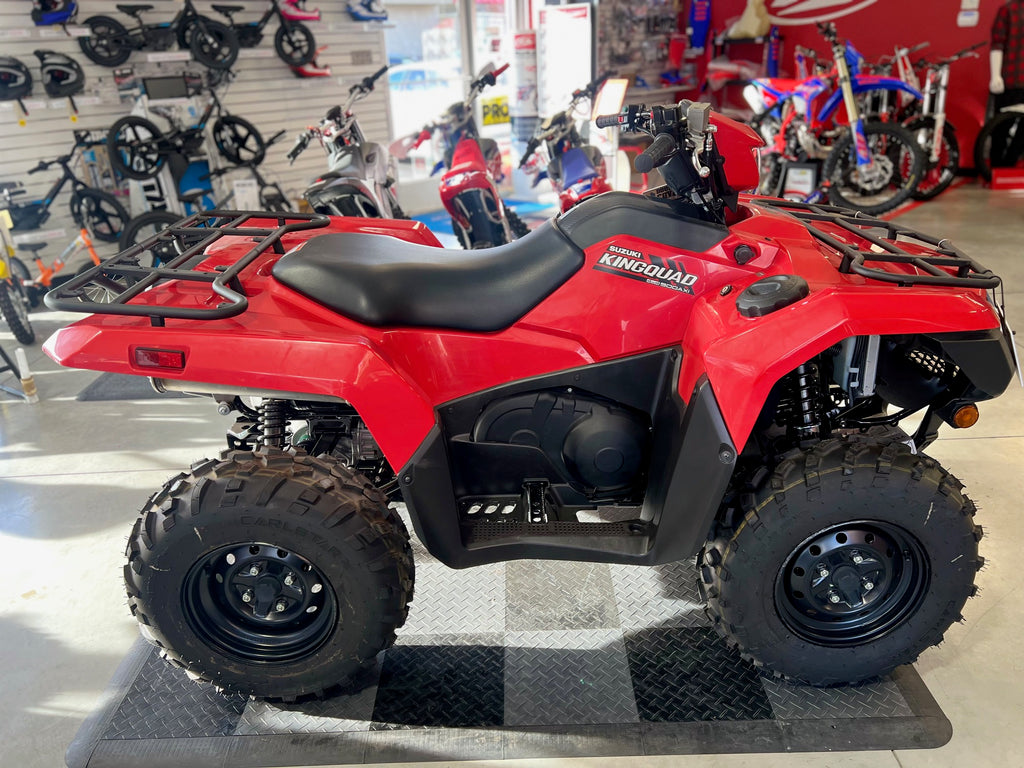

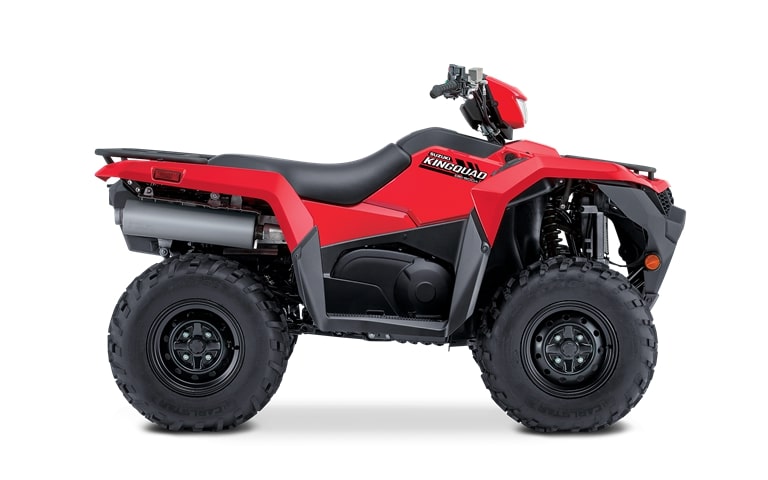

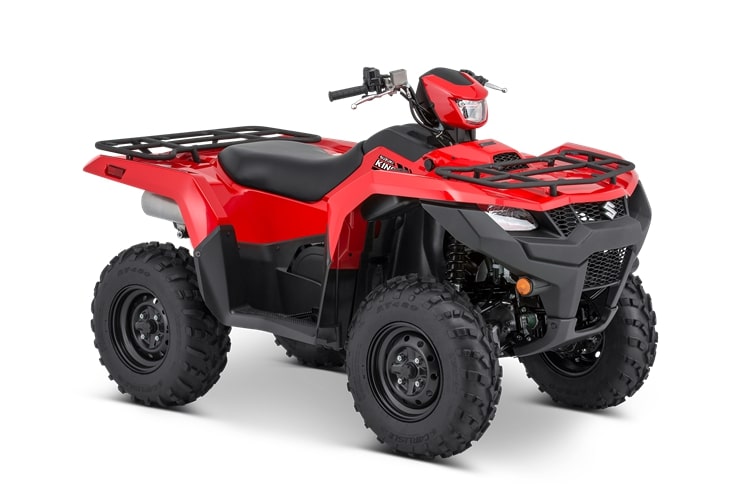

Description:

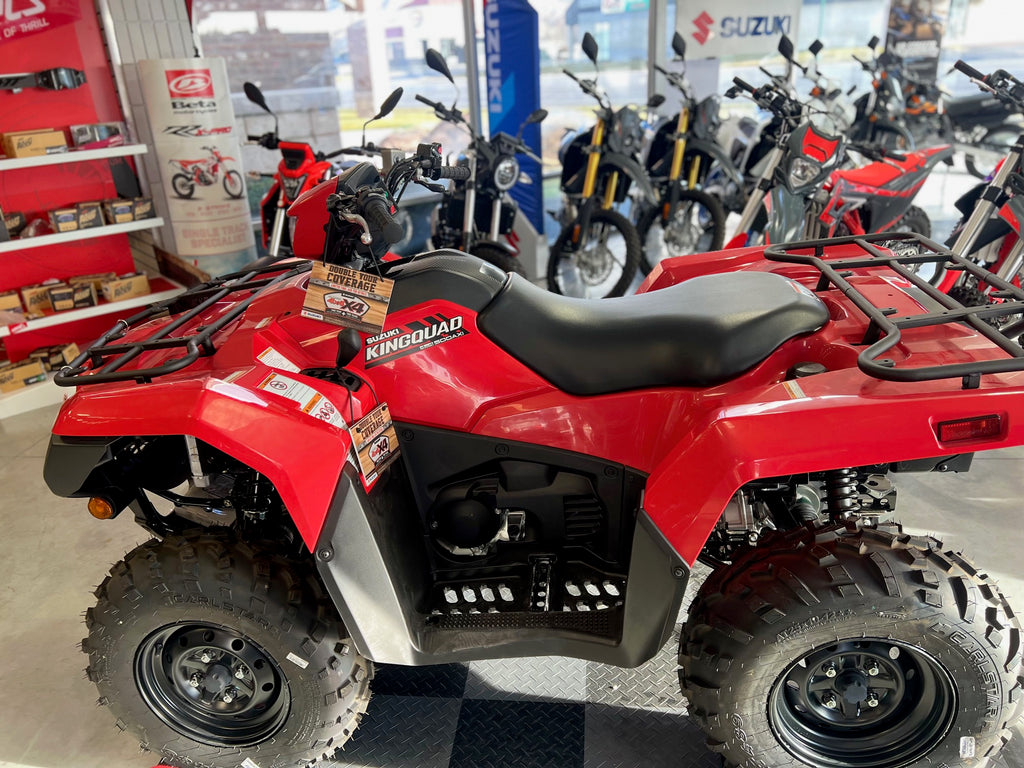

Suzuki, the inventor of the 4-wheel ATV, has created the world’s best sports-utility quad with bold styling plus more capability and reliability than ever before. The legacy of the iconic KingQuad remains fresh and exciting and is ready for you to join its history. The 2024 Suzuki KingQuad 500AXi helps tackle challenging terrain with the capabilities that only a KingQuad possesses.

Features:

Bold, angular styling, and a relaxed riding position

Generous towing capacity and fully independent suspension helps you take on any chore

Torque-rich, EFI-fed engine, and QuadMatic™ transmission with effective engine braking

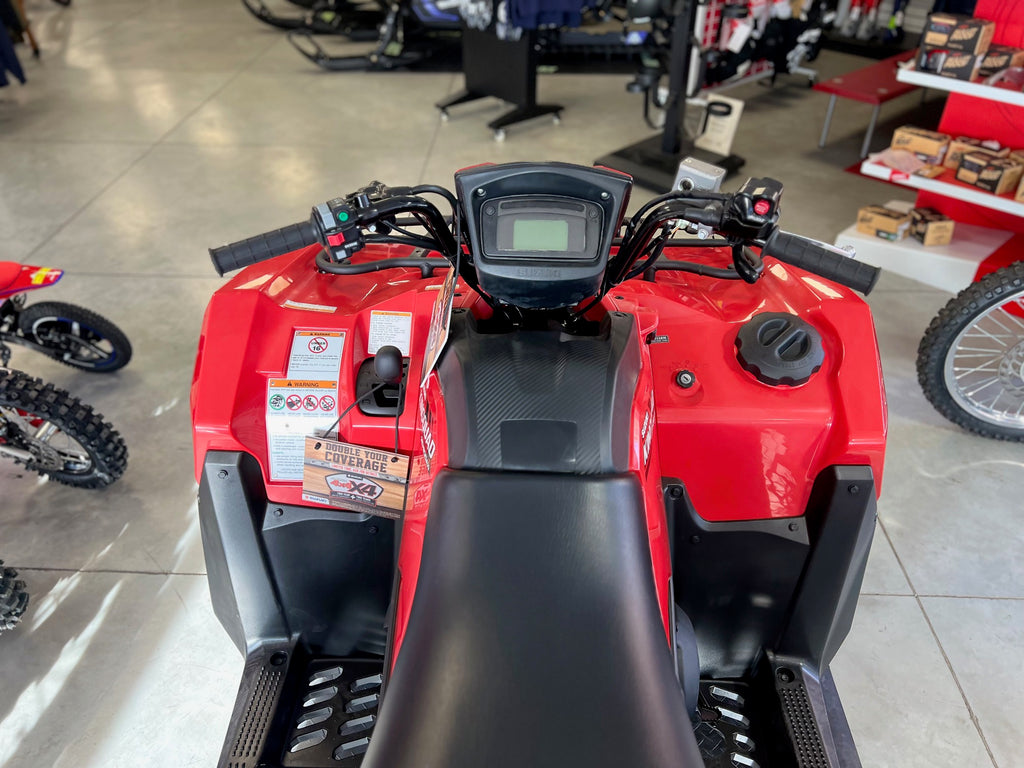

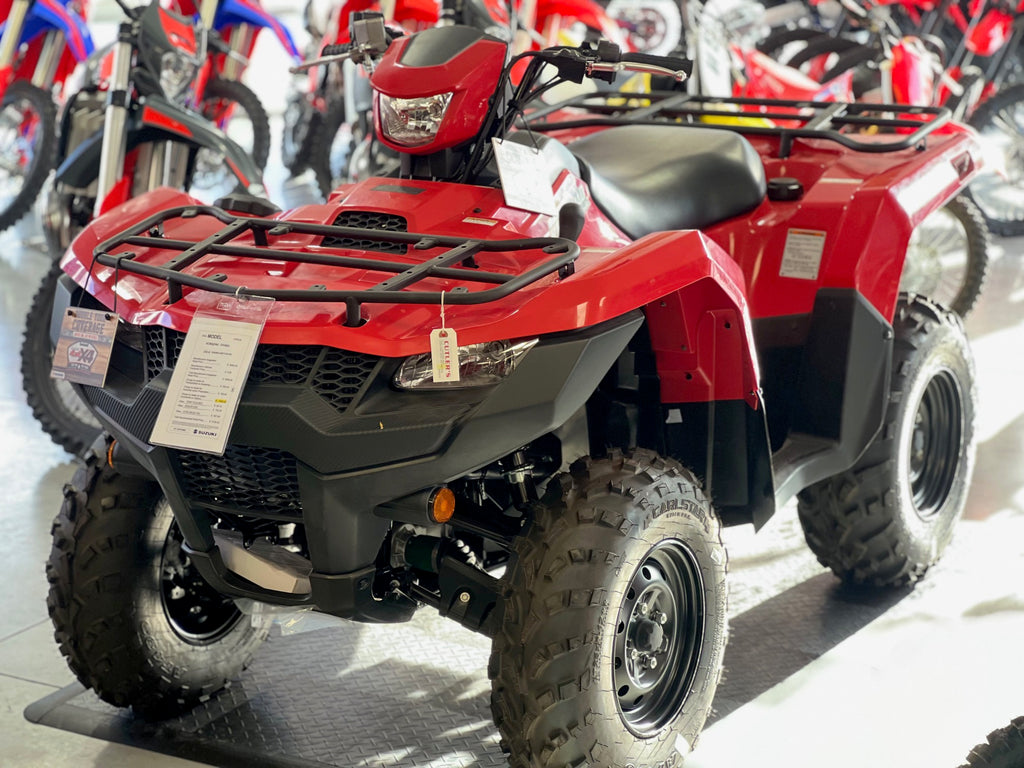

Fender- and handlebar-mounted headlights, LED tail light plus full LCD instrument panel

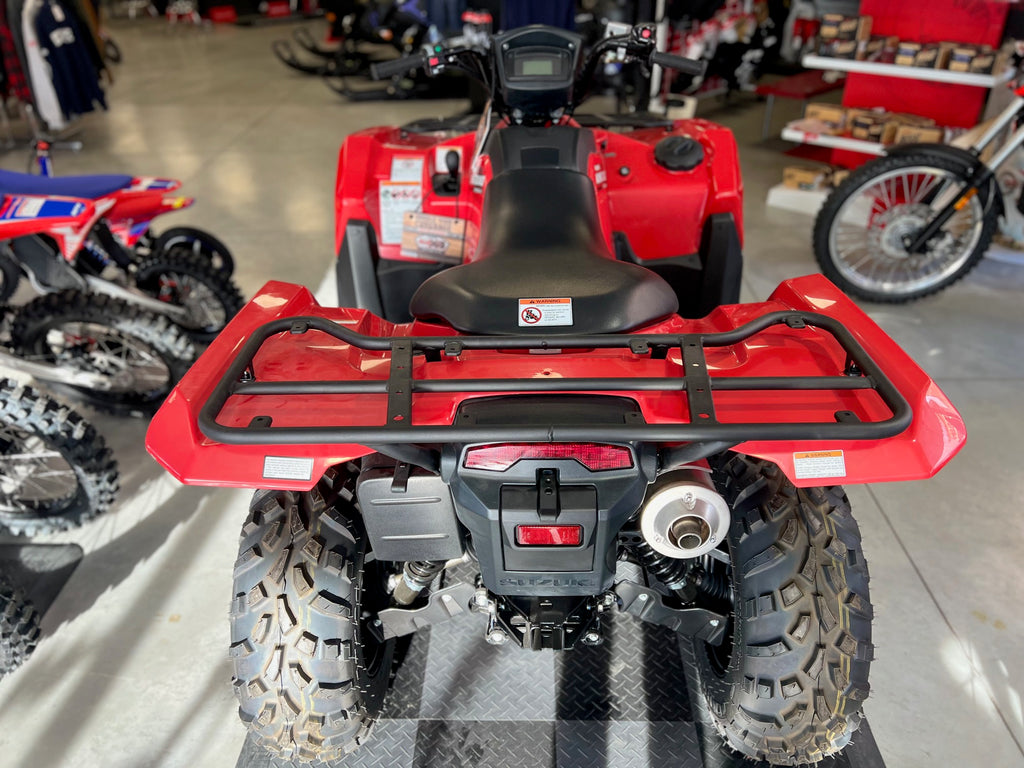

Rugged steel cargo racks lets you set up your KingQuad for any mission

Specifications:

Engine

• Displacement: 493cc (30.1 cu. in.)
• Type: 4-stroke, liquid-cooled, 4-valve, OHC single cylinder
• Bore × Stroke: 87.5 mm × 82.0 mm (3.40 in. × 3.20 in.)
• Compression Ratio: 9.9:1
• Fuel System: Suzuki electronic fuel injection
• Starter: Electric
• Lubrication: Wet sump

Transmission & Drive

• Transmission: Automatic variable ratio (V-belt) with high/low range & reverse
• Clutch: Dry shoe, automatic, centrifugal type
• Driven Wheels: 2WD / 4WD / 4WD Differential Lock
• Final Drive: Shaft drive

Chassis & Suspension

• Front Suspension: Independent, double wishbone, coil spring, gas charged & oil damped with 5-way preload adjustable shocks
• Rear Suspension: Independent, double wishbone, coil spring, gas charged & oil damped with 5-way preload adjustable shocks
• Front Brakes: Disc brakes, twin rotors
• Rear Brakes: Sealed oil-bathed multi-disc
• Front Tires: AT25 × 8-12**, tubeless × 2
• Rear Tires: AT25 × 10-12**, tubeless × 2
• Fuel Tank Capacity: 17.5 L (4.6 US gal.)
• Colors: Terra Green, Flame Red

Electrical

• Ignition: Electronic ignition (transistorized)
• Headlights: 12V 35/35W × 2 fender-mounted, 12V 35W × 1 handlebar-mounted
• Tail Light: LED

Dimensions

• Overall Length: 2,150 mm (84.6 in.)
• Overall Width: 1,215 mm (47.8 in.)
• Overall Height: 1,285 mm (50.6 in.)
• Wheelbase: 1,285 mm (50.6 in.)
• Ground Clearance: 260 mm (10.2 in.)
• Seat Height: 920 mm (36.2 in.)
• Curb Weight: 315 kg (695 lb.), 316 kg (697 lb.) (CA model)

Warranty

• Standard Warranty: 24-month limited warranty
• Extended Coverage: Longer coverage with added benefits available through Suzuki Extended Protection (SEP)
