Description:

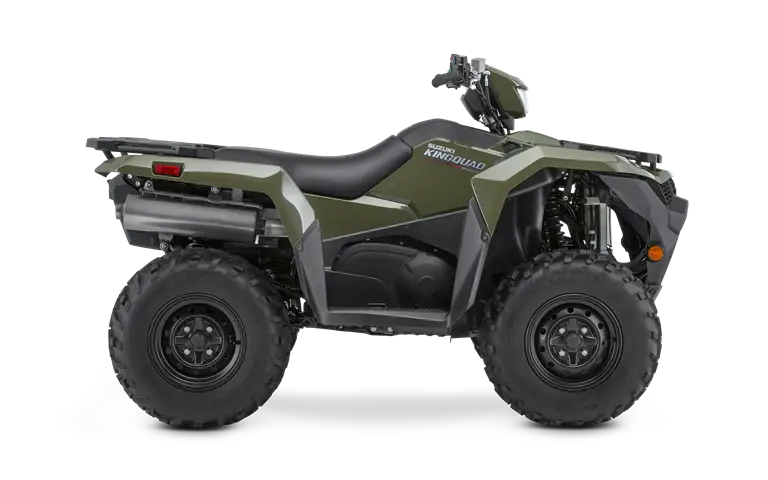

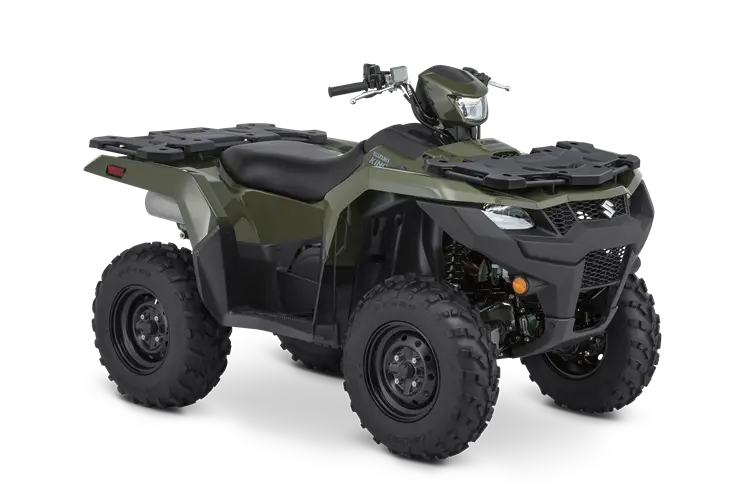

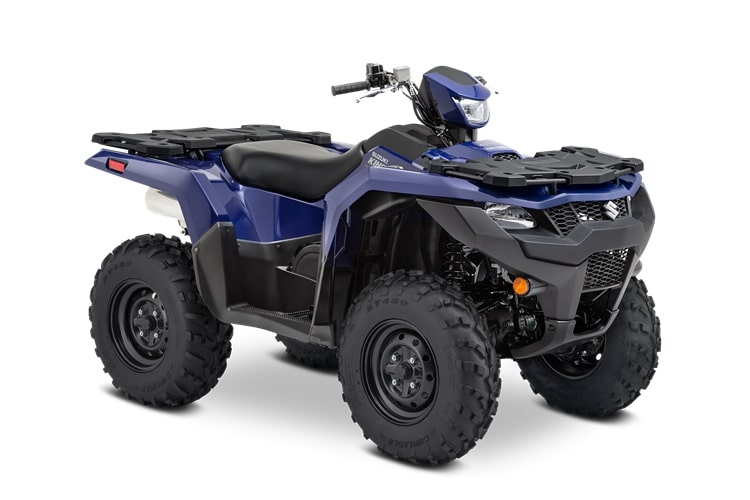

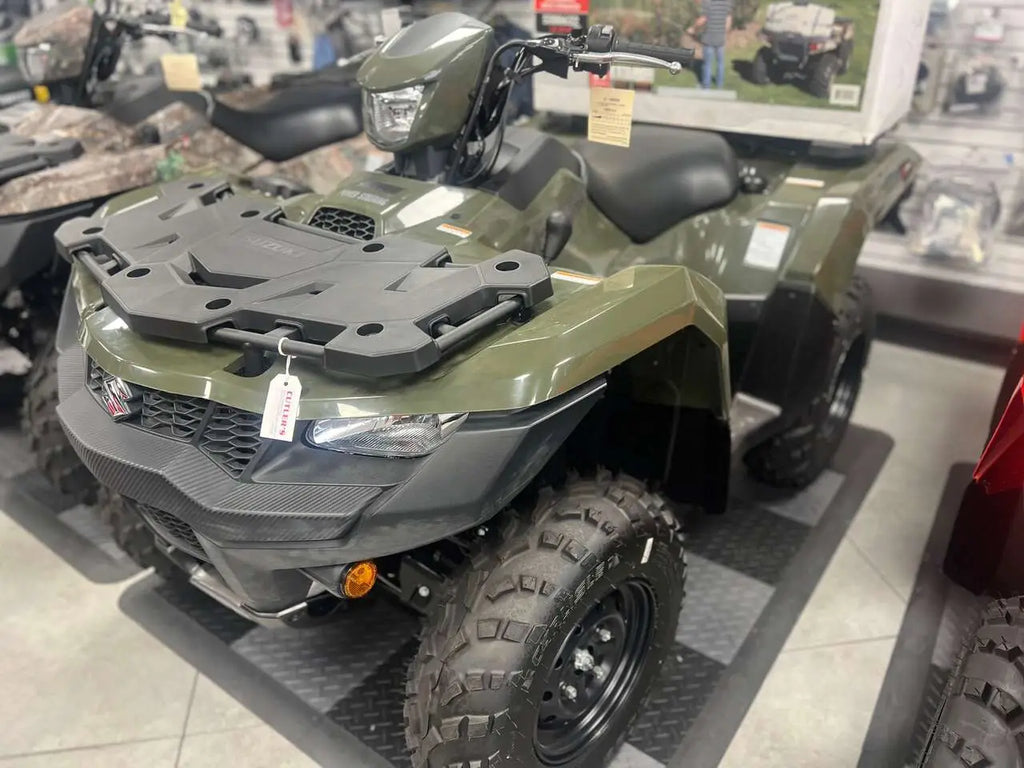

The KingQuad 500AXi Power Steering is not just a new ATV, it’s a KingQuad ATV. Suzuki, the inventor of the 4-wheel ATV, has created the world’s best sports-utility quad with bold styling plus more capability and reliability than ever before. The legacy of the iconic KingQuad remains fresh and exciting, and is ready for you to join its history. The 2023 KingQuad 500AXi Power Steering helps tackle challenging terrain with the capabilities that only a KingQuad possesses.

Features:

• Bold, angular styling, and a relaxed riding position with low-effort electronic power steering
• Generous towing capacity and fully independent suspension helps you take on any chore
• Torque-rich, EFI-fed engine, and QuadMatic™ transmission with effective engine braking
• Fender- and handlebar-mounted headlights, LED tail light plus full LCD instrument panel
• Removable cargo rack protectors help you set up your KingQuad for any mission

Specifications:

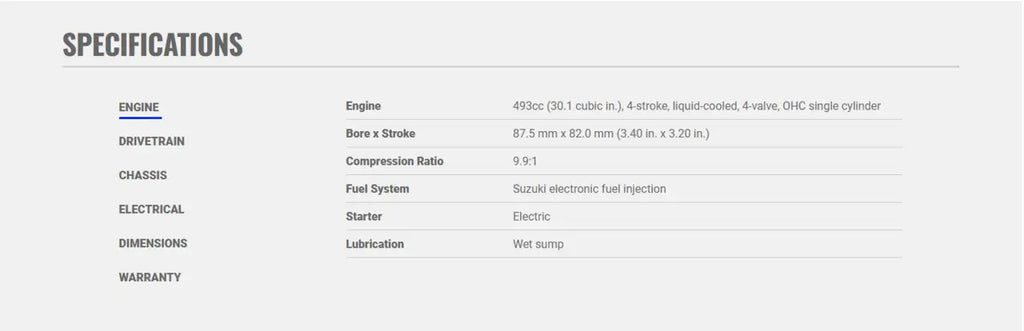

Engine

• Displacement: 493cc (30.1 cu. in.)
• Type: 4-stroke, liquid-cooled, 4-valve, OHC single cylinder
• Bore x Stroke: 87.5 mm × 82.0 mm (3.40 in. × 3.20 in.)
• Compression Ratio: 9.9:1
• Fuel System: Suzuki electronic fuel injection
• Starter: Electric
• Lubrication: Wet sump

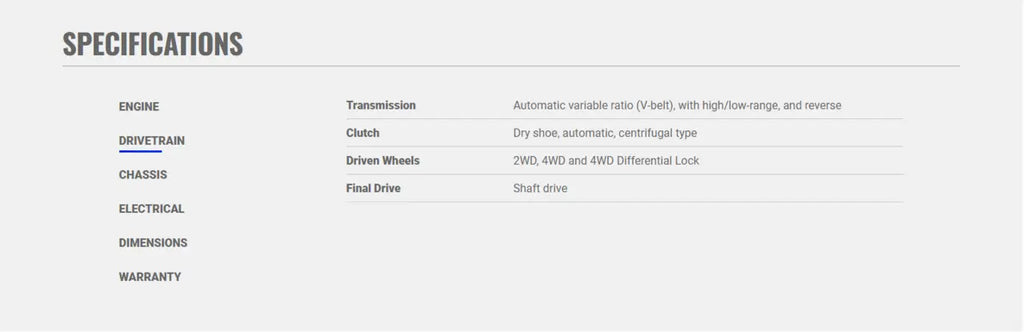

Drivetrain

• Transmission: Automatic variable ratio (V-belt), with high/low range and reverse
• Clutch: Dry shoe, automatic, centrifugal type
• Driven Wheels: 2WD, 4WD, and 4WD Differential Lock
• Final Drive: Shaft drive

Chassis

• Front Suspension: Independent, double wishbone, coil spring, gas-charged and oil-damped with 5-way preload adjustable shock absorbers
• Rear Suspension: Independent, double wishbone, coil spring, gas-charged and oil-damped with 5-way preload adjustable shock absorbers
• Front Brakes: Disc brakes, twin rotors
• Rear Brakes: Sealed oil-bathed multi-disc
• Front Tires: AT25 × 8-12 (tubeless)
• Rear Tires: AT25 × 10-12 (tubeless)
• Fuel Tank Capacity: 17.5 L (4.6 US gal.)

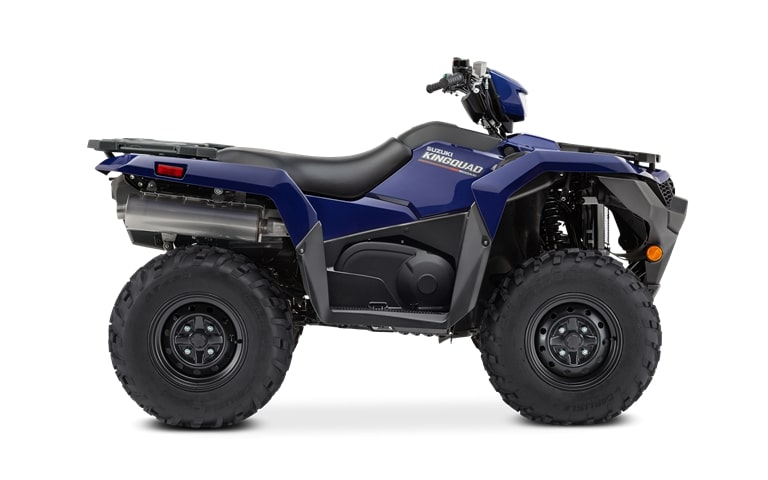

• Available Colors: Terra Green, Flame Red, Great Blue

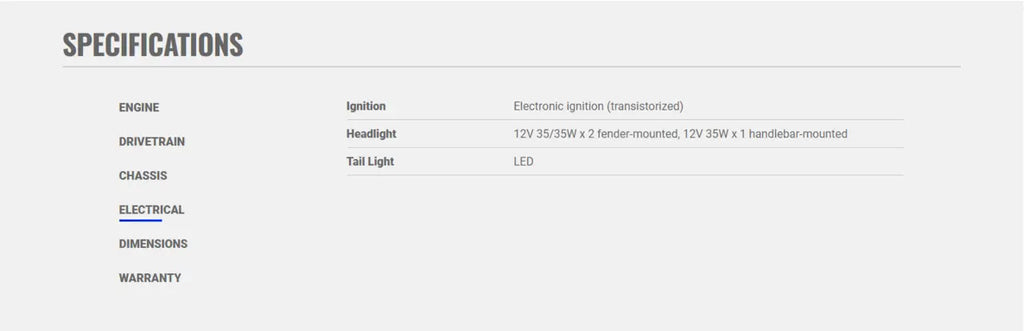

Electrical

• Ignition: Electronic ignition (transistorized)
• Headlights: 12V 35/35W × 2 fender-mounted, 12V 35W × 1 handlebar-mounted
• Tail Light: LED

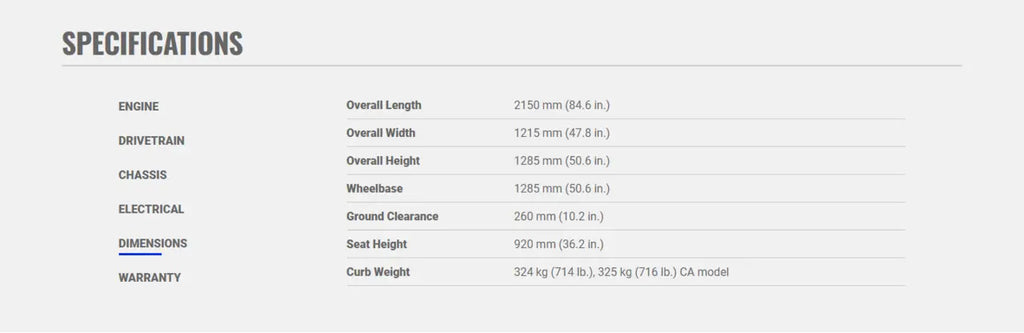

Dimensions

• Overall Length: 2,150 mm (84.6 in.)
• Overall Width: 1,215 mm (47.8 in.)
• Overall Height: 1,285 mm (50.6 in.)
• Wheelbase: 1,285 mm (50.6 in.)
• Ground Clearance: 260 mm (10.2 in.)
• Seat Height: 920 mm (36.2 in.)
• Curb Weight: 324 kg (714 lb.); 325 kg (716 lb.) [CA model]

Warranty

• Standard Warranty: 24-month limited warranty
• Extended Coverage: Longer protection available through Suzuki Extended Protection (SEP)
