Description:

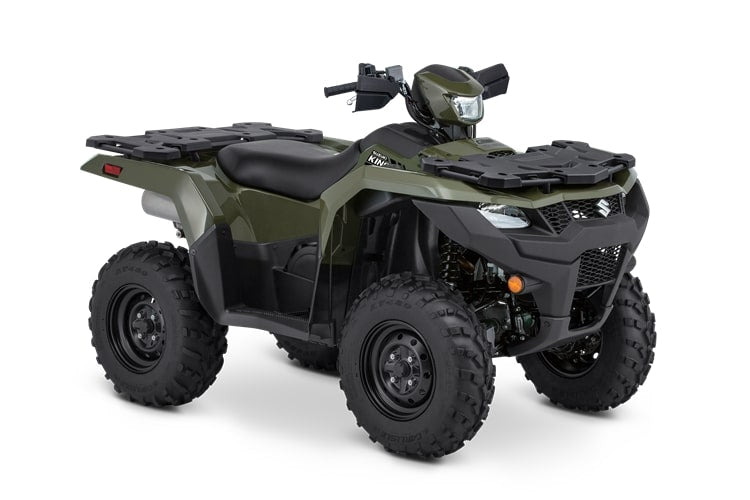

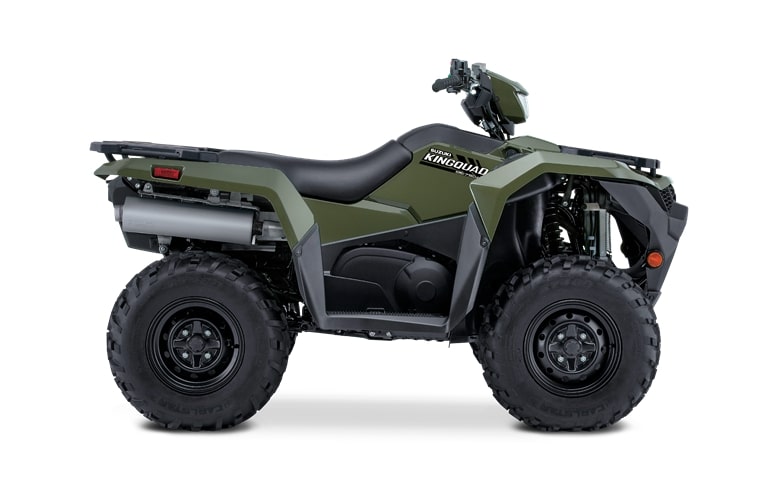

The KingQuad 750AXi Power Steering is not just a new ATV, it's a KingQuad ATV. Suzuki, the inventor of the 4-wheel ATV, has created the world's best sports-utility quad with bold styling plus more capability and reliability than ever before. The legacy of the iconic KingQuad remains fresh and exciting, and is ready for you to join its history. The KingQuad 750AXi Power Steering helps tackle challenging terrain with the capabilities that only a KingQuad possesses.

Features:

• The 722cc, DOHC, single-cylinder, liquid-cooled, four-stroke engine delivers strong low- to mid-range torque and impressive peak horsepower. The four-valve cylinder head has large 36mm intake valves and straight ports for superb cylinder charging efficiency. A sportbike-derived chain-and-gear camshaft drive system helps create a compact engine.
• The engine’s high-capacity oil pump delivers a strong flow of cooling oil to the piston oil jet system to help increase engine durability.
• Advanced Suzuki Fuel Injection provides superb throttle response and fuel efficiency while delivering power consistently across the full rev-range. It also improves engine starting in all conditions.
• The KingQuad easily achieves US emissions compliance, including California models that conform to the state’s stringent evaporative emissions standard and are eligible for California off-highway vehicle (OHV) registration.

Specifications:

Engine

• Displacement: 722cc (44.1 cu. in.)
• Type: 4-stroke, liquid-cooled, 4-valve, DOHC single cylinder
• Bore x Stroke: 104.0 mm x 85.0 mm (4.094 in. x 3.346 in.)
• Compression Ratio: 9.9:1
• Fuel System: Suzuki electronic fuel injection
• Starter: Electric
• Lubrication: Wet sump

Drivetrain

• Transmission: Automatic variable ratio (V-belt), with high/low range and reverse
• Clutch: Dry shoe, automatic, centrifugal type
• Driven Wheels: 2WD, 4WD, and 4WD Differential Lock
• Final Drive: Shaft drive

Chassis

• Front Suspension: Independent, double wishbone, coil spring, gas-charged and oil-damped with 5-way preload adjustable shock absorbers
• Rear Suspension: Independent, double wishbone, coil spring, gas-charged and oil-damped with 5-way preload adjustable shock absorbers
• Front Brakes: Disc brakes, twin rotors
• Rear Brakes: Sealed oil-bathed multi-disc
• Front Tires: AT25 x 8-12 (tubeless)
• Rear Tires: AT25 x 10-12 (tubeless)
• Fuel Tank Capacity: 17.5 L (4.6 US gal.)
• Available Colors: Terra Green, Flame Red, Desert Beige

Electrical

• Ignition: Electronic ignition (transistorized)
• Headlights: 12V 35/35W × 2 fender-mounted, 12V 35W × 1 handlebar-mounted
• Tail Light: LED

Dimensions

• Overall Length: 2,150 mm (84.6 in.)
• Overall Width: 1,215 mm (47.8 in.)
• Overall Height: 1,285 mm (50.6 in.)
• Wheelbase: 1,285 mm (50.6 in.)
• Ground Clearance: 260 mm (10.2 in.)
• Seat Height: 920 mm (36.2 in.)
• Curb Weight: 329 kg (725 lb.); 330 kg (728 lb.) [CA model]

Warranty

• Standard Warranty: 24-month limited warranty
• Extended Coverage: Longer protection available through Suzuki Extended Protection (SEP)
