Description:

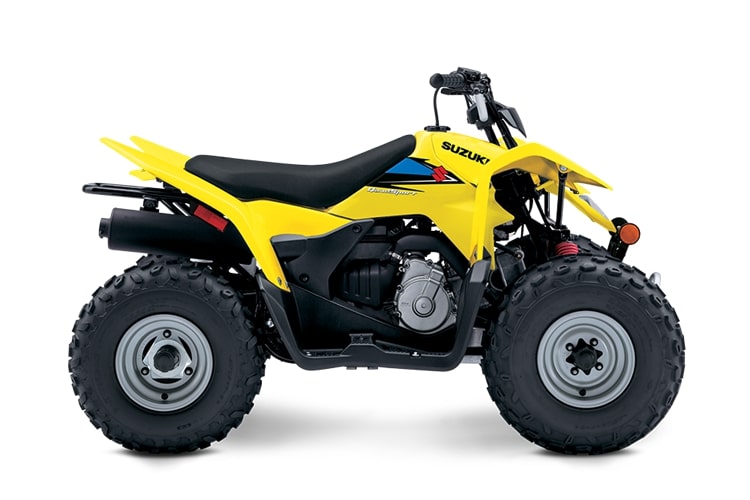

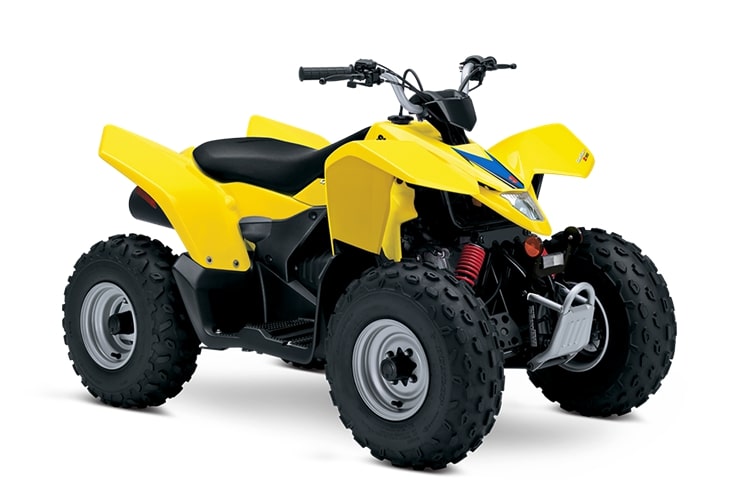

The 2022 Suzuki QuadSport Z90 is the ideal ATV for adult-supervised riders ages 12 and older to develop their skills. Convenient features like an automatic transmission and electric starter help make this ATV suitable for supervised riders ages 12 and up. An easy-to-set throttle limiter lets adults set the power level appropriately for young riders, and a keyed ignition switch makes sure there are no unauthorized journeys. Get your little ones started on the QuadSport Z90, so your whole family can experience the fun of the outdoors and the joy of riding a Suzuki

Features:

• Designed for adult-supervised riders ages 12 and older
• Adjustable throttle limiter controls speed
• Easy electric starting, plus back-up recoil starter
• Smooth-running CVT automatic transmission
• Competition-inspired styling with new yellow bodywork.

Specifications:

Engine

• Displacement: 90cc, 4-stroke, air-cooled, single cylinder, OHC
• Bore x Stroke: 45.5 mm × 55.2 mm (1.791 in. × 2.173 in.)
• Compression Ratio: 9.5:1
• Fuel System: Mikuni VM16, single carburetor
• Starter: Electric with back-up recoil
• Lubrication: Wet sump

Transmission / Drivetrain

• Transmission: CVT automatic
• Clutch: Dry shoe, automatic, centrifugal type
• Drive: 2WD
• Final Drive: Chain, RK530, 60 links

Chassis / Suspension / Brakes

• Front Suspension: Independent, swing axle, coil spring, oil damped
• Rear Suspension: Swingarm type, coil spring, oil damped
• Front Brakes: Twin drum brakes
• Rear Brake: Single drum brake

Tires

• Front: AT19 × 7-8, tubeless (x2)
• Rear: AT19 × 7-8, tubeless (x2)

Dimensions

• Overall Length: 1505 mm (59.3 in.)
• Overall Width: 875 mm (34.4 in.)
• Overall Height: 915 mm (36.0 in.)
• Wheelbase: 1005 mm (39.6 in.)
• Ground Clearance: 150 mm (5.9 in.)
• Seat Height: 650 mm (25.6 in.)
• Curb Weight: 127 kg (280 lb.)

Electrical

• Ignition: Electronic ignition (CDI)
• Headlight: Not equipped
• Tail Light: Not equipped

Other Features

• Fuel Tank Capacity: 6.0 L (1.6 US gal.)
• Color: Champion Yellow No. 2

Warranty

• Standard: 12-month limited warranty
• Extension: Optional coverage through Suzuki Extended Protection (SEP)
