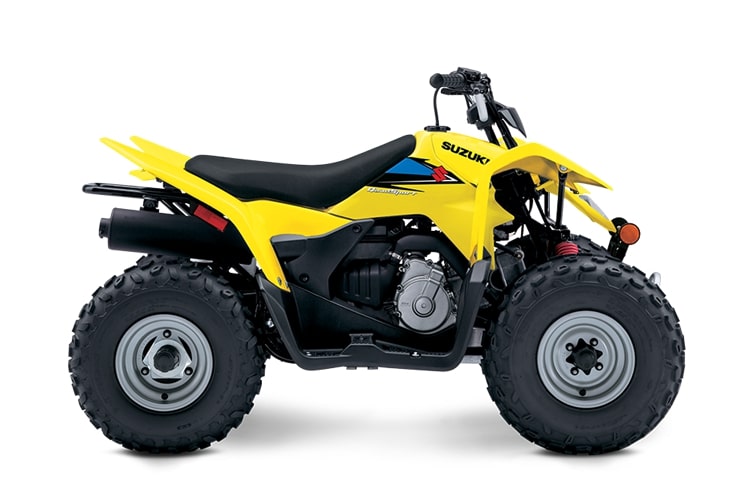

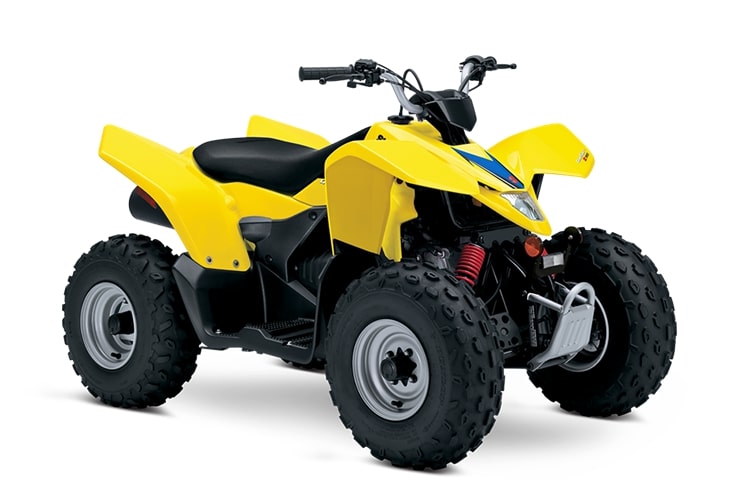

Suzuki Youth ATV / QuadSport Z90 (LT-Z90M4)
Suzuki

Suzuki Youth ATV / QuadSport Z90 (LT-Z90M4)

$3,199.00
SKU: Suzuki Youth ATV / QuadSport Z90 (LT-Z90M4)-LT-Z90M4
Get a quote Get Financing

Usually ready in 24 hours

Details

Description:

The 2024 Suzuki QuadSport Z90 is the ideal ATV for adult-supervised riders ages 12 and older to develop their off-road riding skills. Convenient features like an automatic transmission and electric starter help make this ATV easy to operate while those skills are being formed. To help young beginners grow into accomplished ATV riders, the Z90 includes a keyed ignition switch and throttle limiter to adjust engine performance to the operator’s skill level.

Get young riders started on the QuadSport Z90, so the whole family can experience the fun of the outdoors and the joy of riding a Suzuki

Features:

  • Designed for adult-supervised riders ages 12 and older
  • Adjustable throttle limiter controls speed
  • Easy electric starting, plus back-up recoil starter
  • Smooth-running CVT automatic transmission
  • Competition-inspired styling with new yellow bodywork

Specifications:

Engine

  • Displacement: 90cc, 4-stroke, air-cooled, single cylinder, OHC
  • Bore × Stroke: 45.5 mm × 55.2 mm (1.791 in. × 2.173 in.)
  • Compression Ratio: 9.5:1
  • Fuel System: Mikuni VM16, single carburetor
  • Starter: Electric with back-up recoil
  • Lubrication: Wet sump

Transmission & Drive

  • Transmission: CVT automatic
  • Clutch: Dry shoe, automatic, centrifugal type
  • Driven Wheels: 2WD
  • Final Drive: Chain, RK530, 60 links

Chassis & Suspension

  • Front Suspension: Independent, swing axle, coil spring, oil damped
  • Rear Suspension: Swingarm type, coil spring, oil damped
  • Front Brakes: Twin drum brakes
  • Rear Brake: Single drum brake
  • Front Tires: AT19 × 7-8, tubeless × 2
  • Rear Tires: AT19 × 7-8, tubeless × 2
  • Fuel Tank Capacity: 1.6 US gal. (6.0 L)
  • Color: Champion Yellow No. 2

Electrical

  • Ignition: Electronic ignition (CDI)
  • Headlight: N/A
  • Tail Light: N/A

Dimensions

  • Overall Length: 1,505 mm (59.3 in.)
  • Overall Width: 875 mm (34.4 in.)
  • Overall Height: 915 mm (36.0 in.)
  • Wheelbase: 1,005 mm (39.6 in.)
  • Ground Clearance: 150 mm (5.9 in.)
  • Seat Height: 650 mm (25.6 in.)
  • Curb Weight: 127 kg (280 lb.)

Warranty

  • Standard Warranty: 12-month limited warranty
  • Extended Coverage: Longer protection available through Suzuki Extended Protection (SEP)

Width Weight Height Length
0 Inch 280 Pounds 0 Inch 0 Inch
