Description:

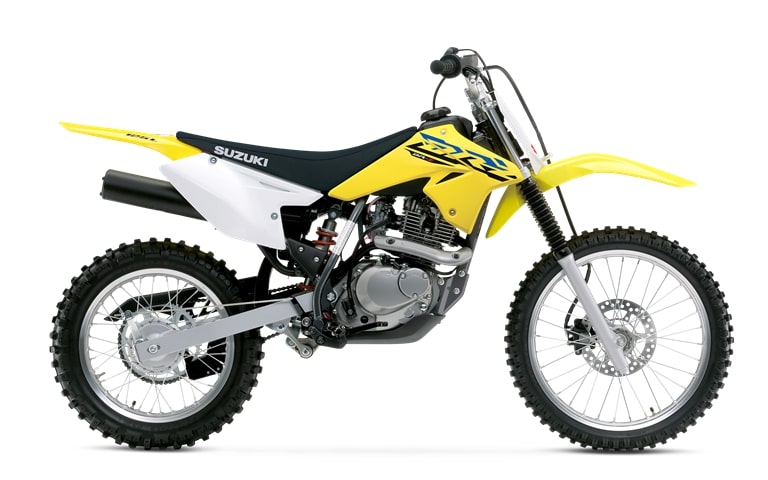

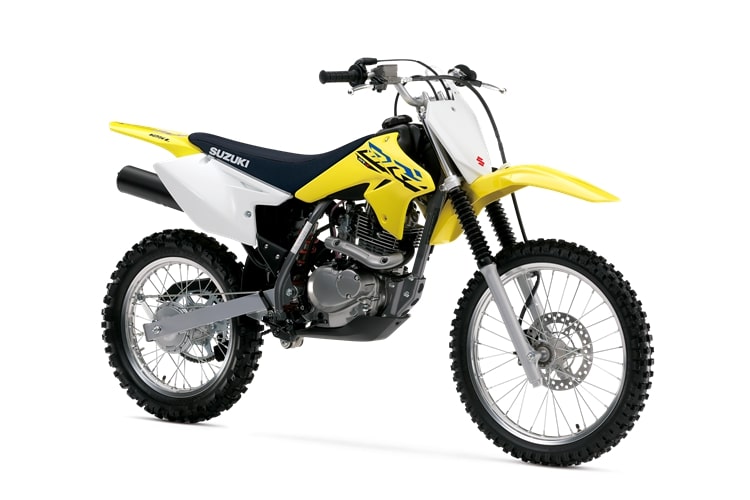

Here comes the DR-Z125L to make sure young and smaller stature riders can tackle the dirt. Larger 19-inch front and 16-inch rear tires, as well as a front disc brake, deliver big bike performance to a size-appropriate motorcycle. Styled to mirror Suzuki’s Championship-winning RM-Z and RMX models, this DR-Z promotes a more race-oriented look, while the sharp handling and strong low-end and mid-range power provide the get-up-and-go that defines off-road bikes. The looks are a testament that you can’t judge a book by its cover, because the DR-Z125L is an unassuming package packed with loads of fun.

Features:

• Compact, 124cc, four-stroke, single cylinder, SOHC, air-cooled engine provides strong low- to mid-range power delivery that can be easily handled.
• Precise digital CDI ignition system has an ignition-timing map that’s tuned to optimize the engine’s power characteristics.
• Mikuni VM20SS carburetor contributes to excellent throttle response.
• The DR-Z125L is EPA Emissions and California red sticker compliant.
• Suzuki Composite Electrochemical Material (SCEM)-plated cylinder is used for durability, weight reduction, and superior heat transfer.

Specifications:

Engine

• Displacement: 124cc, 4-stroke, air-cooled, single-cylinder, SOHC
• Bore x Stroke: 57.0 mm x 48.8 mm (2.244 in. x 1.921 in.)
• Compression Ratio: 9.5:1
• Fuel System: Mikuni VM20SS, single carburetor
• Starter: Primary kickstarter
• Lubrication: Wet sump

Transmission

• Clutch: Wet multi-plate
• Gearbox: 5-speed constant mesh
• Final Drive: Chain, DID 428HG, 130 links

Chassis / Suspension / Brakes

• Front Suspension: Telescopic, coil spring, oil damped
• Rear Suspension: Link type, coil spring, oil damped
• Front Brake: Disc brake, single rotor
• Rear Brake: Drum brake

Tires

• Front: 70/100-19 M/C 42M, tube type
• Rear: 90/100-16 M/C 52M, tube type

Dimensions

• Overall Length: 1885 mm (74.2 in.)
• Overall Width: 770 mm (30.3 in.)
• Overall Height: 1110 mm (43.7 in.)
• Wheelbase: 1270 mm (50.0 in.)
• Ground Clearance: 290 mm (11.4 in.)
• Seat Height: 805 mm (32.0 in.)
• Curb Weight: 89.0 kg (196 lb.)

Other Features

• Fuel Tank Capacity: 4.8 L (1.3 US gal.)
• Color: Champion Yellow No. 2
• Ignition: Electronic ignition (CDI)
• Spark Plug: NGK DR8EA or DENSO X24ESU

Warranty

• Standard: 6-month limited warranty
• Extension: Longer coverage periods available through Suzuki Extended Protection (SEP)
